Multi-Guard PC - Based Digital Surveillance System |
' A surveillance system, for the 21st century and beyond...' |
The Multi-Guard™ Surveillance system allows a user to connect up to Thirty Two cameras to a PC in order to simultaneously display and record images, or view them

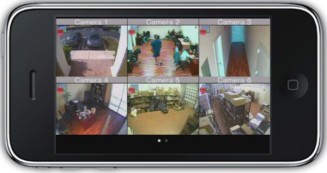

remotely via modem, internet or even by SmartPhone! |

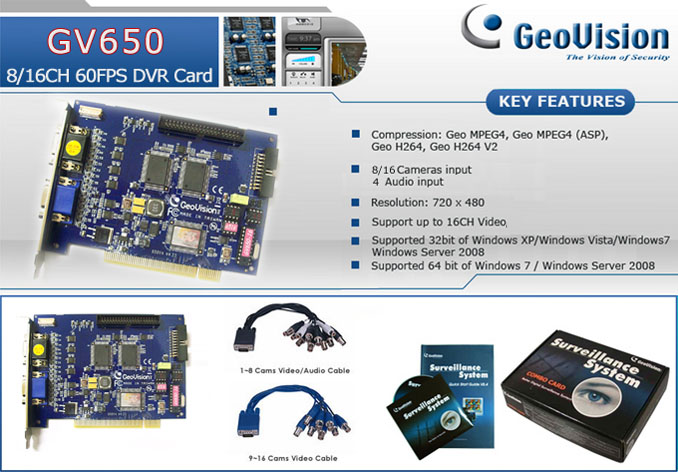

Specifications: - Fully PCI 2.1 Compliant Card installed into vacant PCI expansion slot (BrookTree bt878 Chip).Figure 1 - Supports 4-16 composite video inputs (A/V inputs) Figure 2 - Anytime, anywhere Internet, network or modem access to cameras via remote software or IE browser. Can also remotely access system via PDA/ Smart Phone using iPhone, Android or MS Windows CE software - Individual camera configuration. Each camera can be independently configured for brightness, contrast, video quality (wavelet or Mpeg4 compression), alarm and name. - Motion Detection. Motion detection technology allows for a camera to record only when image changes are detected, saving time & cost of continuous recording as in a traditional VCR system. Adjustable movement detection sensitivity levels - Dial / email out In motion detect mode, unit can dial out to a preprogrammed phone number (mobile phone) or email a jpg file to any email address. - Digital Zoom Function Zoom in or out using mouse - Multiplexing Function Can call up saved images individually or in quad or mozaic format, all recorded in avi format. - Time Lapse Record Function on hard drive, indexed by date and time. - Remote Playback Allows user to remotely playback files via TCP/IP. - Multi-Level Password Function Allows user and owner access levels. - Digital Watermark Prevents the artificial alteration of recorded images maintaining authenticity. - Video Analytics like Inteligent Search allows a user to automatically search an incident within a defined search box Figure 3 - Award winning software |
Software: - Geovision Multi-Cam Digital Surveillance System (Professional Version) - Geovision Multi-Cam Remote Viewer - Geovision Multi-Cam Backup System - Geovision Multi-Cam Remote PlayBack System - Geovision 3G Viewer for iPhone, Android or WinCE |
Package Contents: - 8 or 16 Port Capture Card - User / Installation Manual - Software & Driver CD - Laminated Quick Reference Guide |

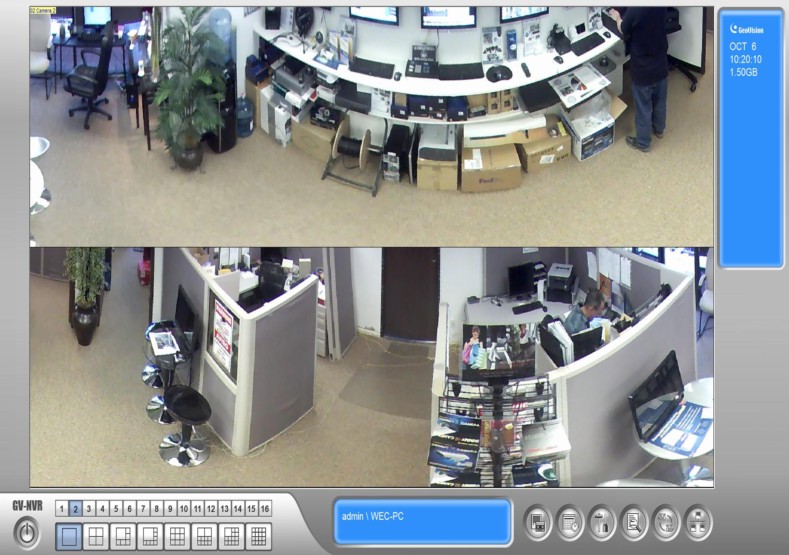

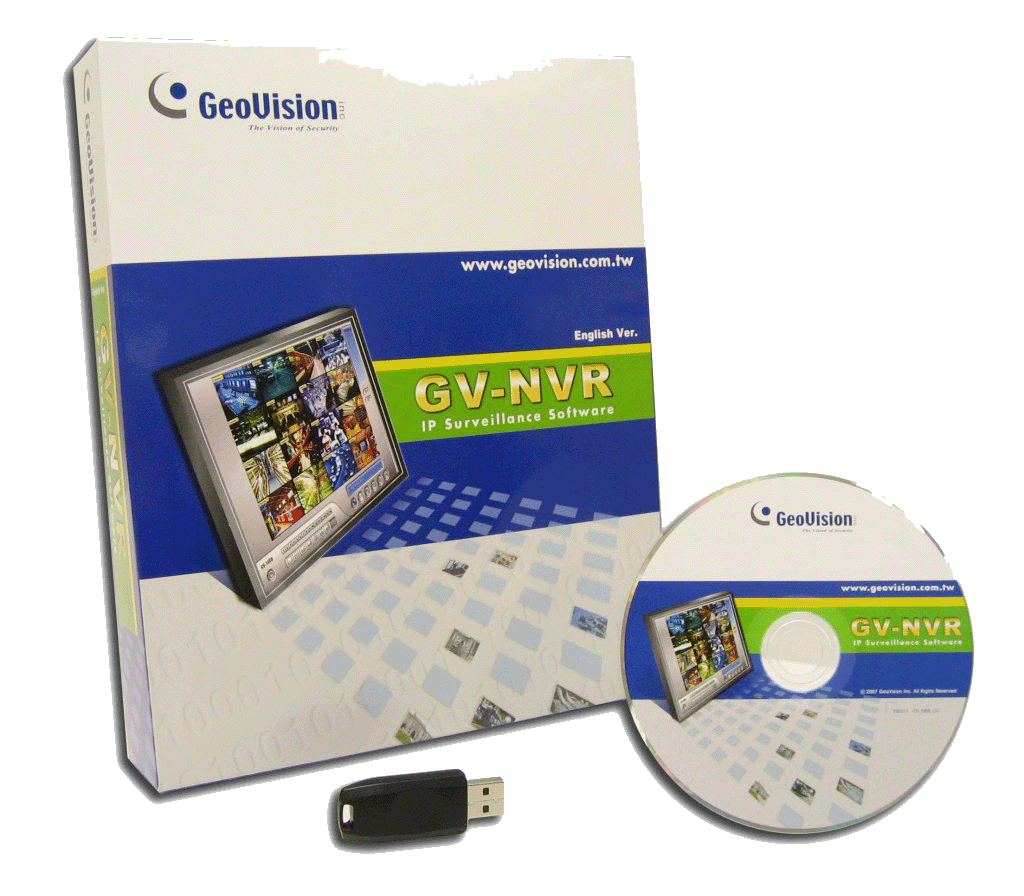

4, 8, 16 and 32 Channel NVR system for Geovision and 3rd Party IP Cameras Onvif Compliant |
The Multiguard Advantage: - High Speed. Cards support 100 fps (Multiguard-16) and up to 32 Channel Real Time Pure NVR platforms - Requires one PCI slot for multiple cameras. Several imported multi-camera cards require several PCI slots for expansion limiting versatility and resulting in a myriad of address conflicts. The Multiguard units are comprised of only one main card and add-on modules, thus require only one PCI slot. - Easy to install and even easier to use. - Fraction of the cost upfront and to maintain when compared to standalone DVR systems. The use of your own computer prevents cost duplication and reduces hardware footprint - Innovation through software design, minimising software obsolescence |

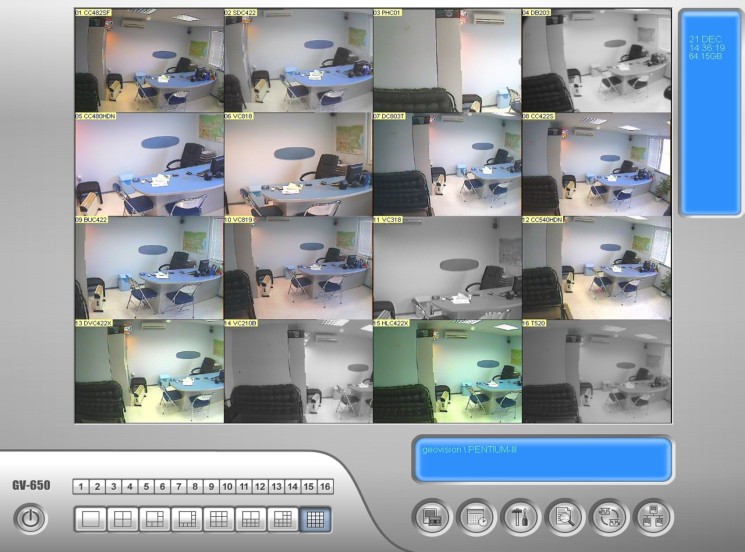

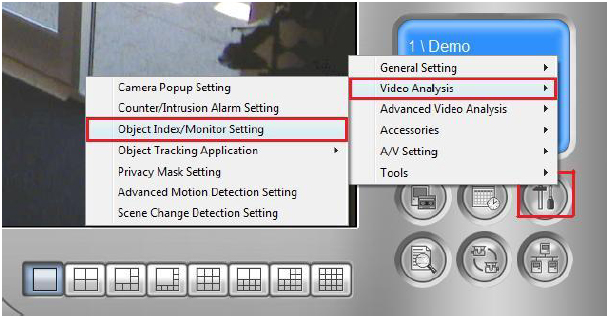

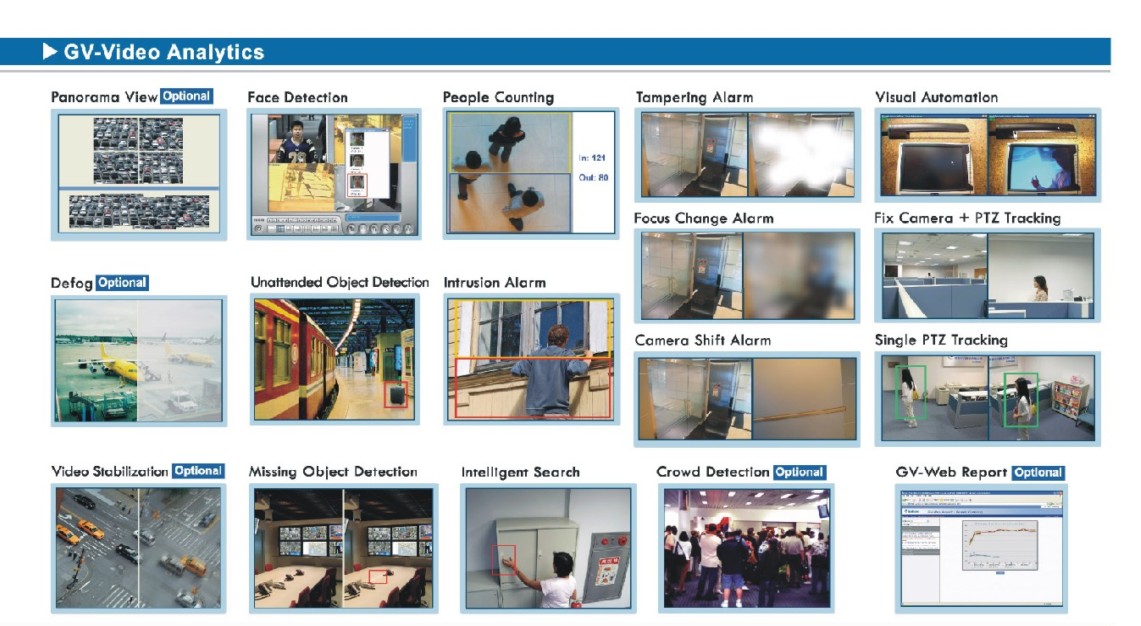

Figure 4 Geovision DVR and NVR Software |
Left Figure 1 Above Figure 2 Below Figure 3 |
Geovision IP Cameras Megapixel HD Resolution Innovative Designs Onvif Compliant |
TM |
TM |
16 camera card 100 Frames Per Second Supports Windows XP, Vista, 7 |
